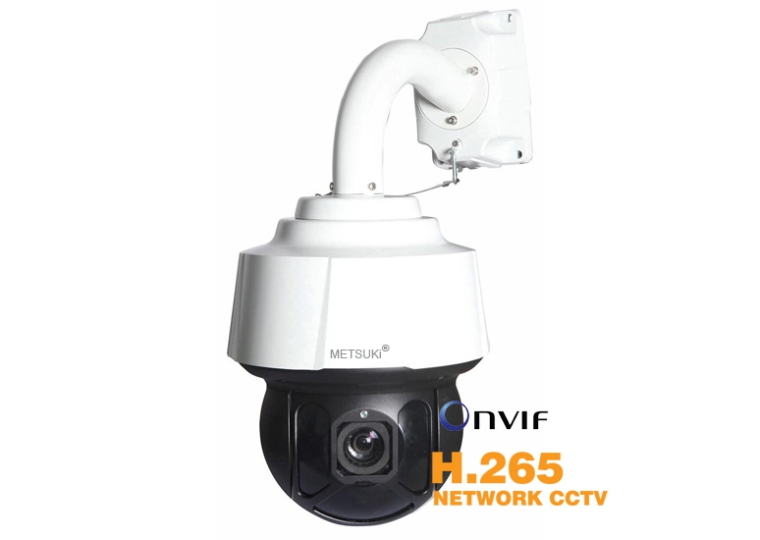

MS-HD8560PTZ
MS-HD8560PTZ | |
Image Sensor | 1/2.5" Aptina 5.0MP High Performance CMOS Sensor |
Horizontal Resolution | 5.0 MegaPixel Main Stream: 2592*1944 /1280*960/1280*720 Extra streams:VGA(640*480)/640*360/QVGA (320*240)/320*180 |
Compression | H.264/H.265 |
S/N Ratio | >50db |
PTZ | |
Horizontal Rotation Speed | 200°/S |
Horizontal Rotation Range | 0°~360° |
Tilt Rotation Speed | 100°/s |
Tilt Rotation Range | 0°~90° |
Auto Flip | Support |
Ratio Speed | Support |
360° Scan | Support |
A-B Scan | Support |
Preset Points | 220 |
Guard Tours | 3 groups |
Guard Points | Max.16 points |
LENS | |
Focus Length | 4.7mm-94mm |
Focus Control | 20X Optical Zoom |
NIGHT VISION | |
Infrared LED | ¢42 x 8PCS IR LEDS + 4PCS LED Laser |
IR Range | 200m |
Auto Control IR LED | PWM |
NETWORK | |
Network protocol | TCP/IP , TTP , NTP , IGMP , DHCP , UDP , SMTP , RTP , RTSP , ARP , DDNS , DNS , PPPoE , P2P |
ONVIF | Support |
Network interface | Built-in RJ45 network interface,support 10M/100M IP DATA |
INTERFACE | |
Audio | / |
Alarm | / |
GENERAL | |
Weatherproof | IP66 |
Operating Temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60° |
Operating Humidity | ≤90% Non Condensing |
Heater & Blower | Auto temperature control |
Power | DC12V/4A |
Lightning Protection | Transient voltage 6000V |
Dimension | 33x33x52(cm) |
Weight | 6.1Kgs |
