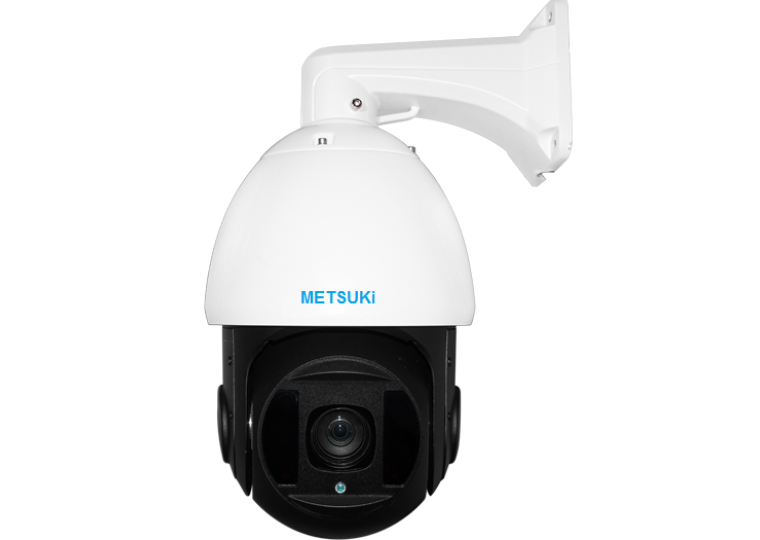

MS-HD8520PTZ

10"Outdoor High Speed PTZ IR 200m

• 1/2.5"Aptina 5.1MP High Performance CMOS Sensor

• H.265/H.264 Compression Method

• 20X Optical Zoom (f=4.7mm-94mm)

• IR Distance 200m Max.

• IP66 Outdoor



MS-HD8520PTZ
Image Sensor 1/2.5" Aptina 5.0MP High Performance CMOS Sensor
Horizontal Resolution 5.0 MegaPixel
Main Stream: 2592*1944 /1280*960/1280*720
Extra streams:VGA(640*480)/640*360/QVGA (320*240)/320*180
Compression H.264/H.265
S/N Ratio >50db
PTZ
Horizontal Rotation Speed 200°/S
Horizontal Rotation Range 0°~360°
Tilt Rotation Speed 100°/s
Tilt Rotation Range 0°~90°
Auto Flip Support
Ratio Speed Support
360° Scan Support
A-B Scan Support
Preset Points 220
Guard Tours 3 groups
Guard Points Max.16 points
LENS
Focus Length 4.7mm-94mm
Focus Control 20X Optical Zoom
NIGHT VISION
Infrared LED ¢42 x 8PCS IR LEDS + 4PCS LED Laser
IR Range 200m
Auto Control IR LED PWM
NETWORK
Network protocol TCP/IP , TTP , NTP , IGMP , DHCP , UDP , SMTP , RTP , RTSP , ARP , DDNS , DNS , PPPoE , P2P
ONVIF Support
Network interface Built-in RJ45 network interface,support 10M/100M IP DATA
INTERFACE
Audio /
Alarm /
GENERAL
Weatherproof IP66
Operating Temperature Indoor: 0°~ +40° Outdoor: -40°~ +60°
Operating Humidity ≤90% Non Condensing
Heater & Blower Auto temperature control
Power DC12V/4A
Lightning Protection Transient voltage 6000V
Dimension 33x33x52(cm)
Weight 6.1Kgs
