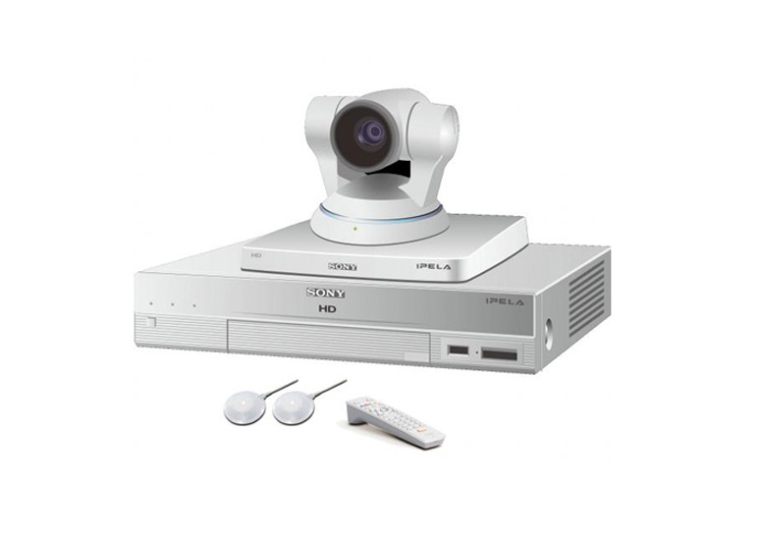

Hội nghị truyền hình SONY độ nét cao PCS-XG80 HD

Hotline: 094 948 2288

Email: info@metsuki.com.vn

Hội nghị truyền hình SONY độ nét cao PCS-XG80 HD

Lượt xem:
234
Mã sản phẩm :
0

Liên hệ

Thêm vào giỏ hàng Mua ngay

sử dụng bộ giải mã video H.264 để mang đến cho bạn hình ảnh độ nét cao (HD) mịn và tự nhiên ở độ phân giải 1920 x 1080 pixel. Video HD tuyệt đẹp tăng cường hội nghị truyền hình của bạn với hình ảnh giống như cuộc sống.

TÍNH NĂNG, ĐẶC ĐIỂM:

• Codec Full HD 1080i

• Máy ảnh Full HD của BrightFace

• Luồng kép H.239 ở tốc độ 30 khung hình / giây với H.264

• Bộ điều khiển từ xa RF

SONY PCS-XG80
Image sensor	1/3-type CMOS image sensor
Picture sensor (Useful pixels count)	2 Megapixels
Communication protocol standards	H.320, H.323, IEFT SIP
VIDEO STANDARD
Compression standard	H.261, H.263, H.263+, H.263++, H.264, MPEG-4 Video (SIP only)
Resolution (4:3)	QCIF (176 x 144), CIF (352 x 288), 4CIF (704 x 576)
Resolution (16:9)	wCIF/w288p (512 x 288), w432p (768 x 432), w4CIF (1024 x 576), 720p (1280 x 720), 1080i (1920 x 1080)
Maximum Frame Rate (H.261)	QCIF 30fps, CIF 30fps
QCIF 30fps, CIF 30fps	QCIF 30fps, CIF 30fps, 4CIF 10fps
Maximum Frame Rate (H.264)	QCIF 30fps, CIF 30fps, 4CIF 30fps, wCIF 30fps, w432p 30fps, w4CIF 30fps, 720p 60fps, 1080i 60fps
Memory Stick	Memory Stick Duo/Memory Stick PRO Duo/Memory Stick PRO Duo(High Speed)/Memory Stick PRO-HG Duo
BitRate (IP)	64 kb/s to 10 Mb/s
BitRate (ISDN with optional PCSA-B768S)	56 kb/s to 768 kb/s
BitRate (ISDN with optional PCSA-B384S)	56 kb/s to 384 kb/s
AUDIO STANDARD
Bandwidth and coding	MPEG-4 AAC-LC Stereo: 22kHz at 128kb/s, 192 kb/s - IP Only MPEG-4 AAC-LC Mono : 22kHz at 64 kb/s, 96 kb/s - IP only MPEG-4 AAC-LC Mono : 22kHz at 64 kb/s, 96 kb/s - IP only G.711: 3.4kHz at 56 kb/s, 64 kb/s G.722: 7.0kHz at 48 kb/s, 56 kb/s, 64 kb/s G.728: 3.4kHz at 16 kb/s
Echo cancellation	Stereo echo-canceling supported Noise Reduction Included Automatic gain control Included
SCREEN LAYOUT
Screen Layout	Full screen, Picture-in-Picture, Picture-and-Picture, Side-by-Side split screen
ITU-T STANDARDS (EXCLUDES AUDIO/VIDEO STANDARDS)
ITU-T standards	H.221, BONDING, H.225.0, H.231, H.241, H.242, H.243, H.245
OTHER STANDARDS
Other Standards	RFC2190, RFC3016, RFC3047, RFC3261, RFC3264, RFC3550, RFC3984, RFC4537, RFC4587,RFC4629, RFC4856
NETWORK PROTOCOL
Network Protocol	TCP/IP, UDP/IP, RTP/RTCP, DHCP, DNS, SNMP, TELNET, SSH, HTTP, HTTPS, SNMP, NTP, PPPoE, UPnP
MULTIPOINT CAPABILITY
Multipoint Capability (with optional sw PCSA-MCG80)	TInternal MCU Up to 6 sites (H.320/H.323/SIP)
Multipoint Capability (with optional sw PCSA-MCG80) using cascade connection	Internal MCU Up to 10 sites (H.320/H.323/SIP)
DATA SHARING
Data Sharing	H.239 video and presentation data
LIP SYNCHRONIZATION
Lip Synchronization	ON/OFF
MIC OFF FUNCTION
Mic Off Function	ON/OFF
ENCRYPTION PROTOCOLS
Encryption Protocols	H.233, H.234, H.235 ver.3
NETWORK
QoS (Quality of Service)	Adaptive FEC (Forward Error Correction), Real-time ARQ (Auto Repeat reQuest), ARC (Adaptive Rate Control)
Others network features	NAT, IP Precedence/DiffServe, UDP Shaping, TCP/UDP Port Setting, Auto Gatekeeper Discovery, Packet Reordering, URI Dialing
Camera Control
Far End Camera Control	H.281
INTERFACE
Video input	AUX Video Input (S Video x 1, analog component Y/Pb/Pr x 1, RGB x 1)
Video output	HDMI (video, audio) x 1, RGB x 1
Audio input	Mic Input x 2 (stereo x 1/mono x 2, plug-in power) up to 14kHz EC-Mic Input x 2 (PCSA-A7) up to 14kHz Audio Input (MIC/AUX) x 2 (RCA pin, stereo) up to 22kHz (AUX
Audio output	HDMI (video, audio) x 1, Line Output (RCA pin, stereo) x 1, REC Output (RCA pin, stereo) x 1
Network Port	10BASE-T/100BASE-TX x2
Control	RS-232C
Memory Stick Slot	1
Tablet Interface	1
Maintenance Interface	RS-232C x 1
ISDN Unit Interface	1
GENERAL
Operating temperature	5 to 35 °C (41 to 95 °F)
Operating humidity	20 to 80% (non condensing)
Storage temperature	-20 to 60 °C (-4 to 140 °F)
Storage humidity	20 to 80% (non condensing)
Power requirements	DC 19.5 V (AC Adapter: AC 100 to 240 V, 50/60 Hz)
Power consumption	40 W (codec only)/90 W (with PCSA-CXG80, PCSA-A7P4, PCSA-B768S)
Power consumption (stand-by)	10 W (codec only)/15 W (with PCSA-CXG80, PCSA-A7P4, PCSA-B768S)
Dimensions (W x H x D)	282 x 56 (including rubber feet) x 244 mm (11 1/8 x 2 1/4 x 9 5/8 inches), excl. projections
Mass	2.2 kg (4 lb 14 oz)
