Hội nghị truyền hình SONY độ nét cao PCS-MCS1

Hotline: 094 948 2288

Email: info@metsuki.com.vn

Hội nghị truyền hình SONY độ nét cao PCS-MCS1

Lượt xem:
196
Mã sản phẩm :
0

Liên hệ

Thêm vào giỏ hàng Mua ngay

Thiết bị điều khiển đa điểm PCS-MCS1 (16SITE) :

* Điều khiển đa điểm lên đến 16 điểm Full HD bao gồm PCS-MCS1 đã kích hoạt PCSA-MPE1/PCSA-MPE2.

* Tích hợp các công nghệ mới nhất của Sony:

* Real-time ARQ (Auto Repeat request)

* ARC (Adaptive Rate Control)

* Adaptive FEC (Forward Error Correction)

* Chuẩn video : H.264 High Profile

* Độ phân giải HD1080P

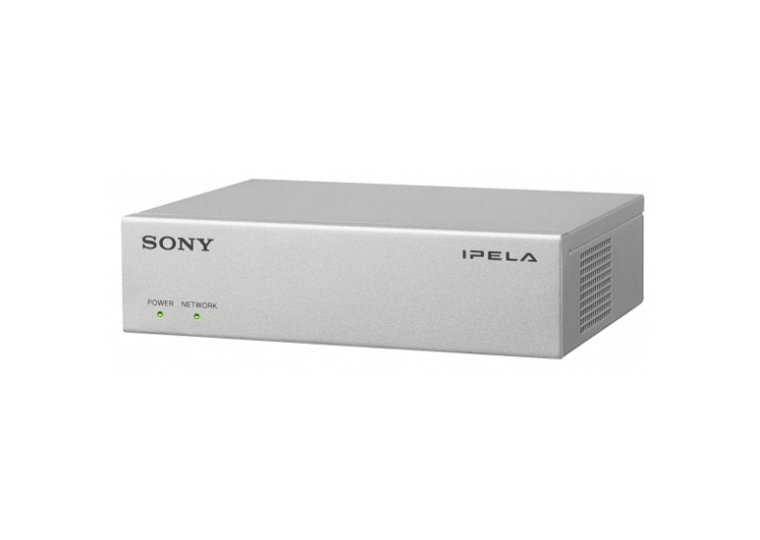

SONY PCS-MCS1
Communication Protocol Standards	H.261*2, H.263, H.263+, H.263++, H.264, H.264 High profile, MPEG-4 SP@L3
NETWORK
Protocols	TCP/IP, UDP/IP, DHCP, DNS, HTTP, TELNET, SSH, SNMP, NTP, ARP, RTP/RTCP
QoS (Quality of Service)	Adaptive FEC (Forward Error Correction), Real-time ARQ (Auto Repeat reQuest), ARC (Adaptive Rate Control)
Others network features	NAT, IP Precedence/DiffServe, UDP Shaping, TCP/UDP Port Setting, Auto Gatekeeper Discovery, Packet Reordering, URI Dialing
VIDEO STANDARD
Resolution (4:3)	QCIF (176 x 144), CIF (352 x 288), 4CIF (704 x 576)
Resolution (16:9)	wCIF/w288p (512 x 288), w432p (768 x 432), w4CIF (1024 x 576), 720p (1280 x 720), 1080i (1920 x 1080)
Maximum Frame Rate	H.261 QCIF 30 fps, CIF 30 fps; H.263 QCIF 30 fps, CIF 30 fps, 4CIF 30 fps; H.264 QCIF 30 fps, CIF 30 fps, 4CIF 30 fps, wCIF 30 fps, w432p 30 fps, w4CIF 30 fps, 720p 60 fps, 1080p 60 fps
Bit Rate	64 kbps to 16,000 kbps
Screen Layout	Full Screen, PinP, PandP, SideBySide, PandPandP
Other Features	Stereo echo-cancelling (ON/OFF), Auto Gain Control, Noise Reduction
AUDIO STANDARD
Bandwidth and Coding (MPEG-4 AAC Stereo)	22 kHz at 192 kbps (IP only)
Bandwidth and Coding (MPEG-4 AAC Mono)	14 kHz at 48 kbps, 64 kbps, 96 kbps
Bandwidth and Coding (MPEG-4 AAC Mono)	22 kHz at 64 kbps, 96 kbps (IP only)
Bandwidth and Coding (G.711)	3.4 kHz at 56 kbps, 64 kbps
Bandwidth and Coding (G.722)	7.0 kHz at 48 kbps, 56 kbps, 64 kbps
Bandwidth and Coding (G.728)	3.4 kHz at 16 kbps
Multipoint Capability	Up to 9 sites (H.323) with optional software PCSA-MCG109. (6 sites with H.320), 10 to 16 sites (H.323) requires two PCS-XG100S units with optional software PCSA-MCG109 using cascaded connection. (10 sites with H.320)
Data Sharing	PC images up to 1080p resolution is supported.Video annotation function is available.
Lip Synchronization	AUTO/OFF
Streaming/Recording Feature	Video: 512 kbps to 1 Mbps (2-step), Audio: 64 kbps
INTERFACE
Video input	External video inputs (HDMI x 1, DVI-I x 2)
Video output	HDMI x 2, DVI-I x 1
Control Input	RS-232C x 1
Audio input	External analog microphone input Mini-jack (Plug in power) x 2 (L/R) Audio Input (MIC/AUX) x 1 (RCA pin, stereo)
Audio output	Headphone Output (Mini, Stereo) x1, REC Output (Pin, Stereo) x1
Network Port	10BASE-T/100BASE-TX x1, ISDN Unit Interface x1
Control	RS-232C
Maintenance Interface	RS-232C x 1
Others	USB x 2 (Pen Tablet, USB Memory)
STANDARDS
Communication Protocol Standards	ITU-T H.320, H.323, IETF SIP
ITU-T (exclude audio/video standards)	H.231, H.241 H.242, H.243, H.245, H.350, H.460.18, H.460.19
IETF	RFC2190, RFC3016, RFC3047, RFC3261, RFC3264, RFC3550, RFC3984, RFC4573, RFC4587, RFC4629, RFC4856, RFC4628, RFC5168
Encryption	H.233, H.234, H.235 ver.3
Far End Camera Control	H.224, H.281
Frame Format	H.221, BONDING, H.225.0
Dual Stream	H.239 (video and presentation data)
GENERAL
Operating temperature	5 to 35 °C (41 to 95 °F)
Operating humidity	20 to 80%
Storage temperature	-20 to 60 °C (-4 to 140 °F)
Storage humidity	20 to 80%
Power requirements	DC 19.5 V (AC Adapter: AC 100 to 240 V, 50/60 Hz)
Power consumption	58.5W (23.4W, Standby)
Dimensions (W x H x D)	Approx. 370 x 60 x 244 mm (excluding protrusions), Approx. 14 5/8 x 2 3/8 x 9 5/8 inches (excluding protrusions)
Mass	Approx. 2.3 kg
