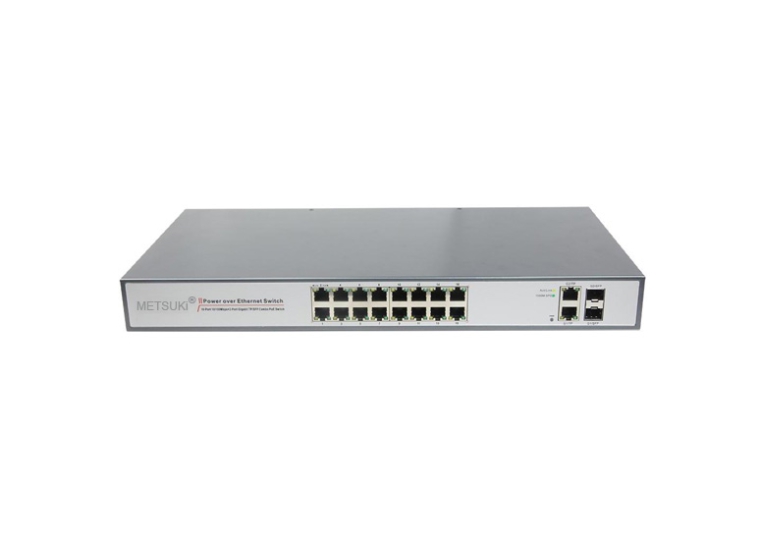

SWITCH POE MS-6616PoE

Name: SWITCH POE MS-6616PoE
Brand: SWITCH POE
SKU: SP0982
Availability: InStock
Rating: 4.4 (89 reviews)

Hotline: 094 948 2288

Email: info@metsuki.com.vn

Danh mục sản phẩm

TECHNICAL PARAMETER LIST
Model	MS-6616PoE
Product Name	PoE Switch with 16 Ethernet PoE Ports and 2 Gigabit Combo Ports
Connector Type	16x 10/100M copper cable RJ45 ports (all ports support MDI/MDIX) 2x gigabit combo ports
Network Medium	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: 5 classes and more than 5 classes(≤100 meter) Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)
Performance Specifications	Bandwidth: 3.2Gbps (non-blocking) Network Latency (100 to 100M bps): maximum delay less than 20microseconds Packet Buffer Memory: 96KB Address Database Size: 1,000 MTBF: 190,000 hours (about 21 years)
Network Protocols and Standards	IEEE 802.3i 10BASET, IEEE 802.3u 100BASETX IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI, IEEE 802.3af
LEDs Status	System: power supply Every Port: connecting, PoE working status
Power	Maximum PoE power: 260W, PoE port power:15.4W(1~16 port) Power input: AC100-240V 50/60Hz; (every country use a custom power plug)
Working Environment	Operating Temperature: 0 ° ~ 55 ° C, Storage Temperature: -20 ° ~ 75 ° C Humidity: 10% ~ 90%, non-condensing, Storage Humidity: 10% ~ 95%, non-condensing Working Altitude: 3000 m (10,000 ft), Storage Altitude: 3,000 m (10,000 ft)
Radiation	CE mark, commercial, FCC Part 15 Class B VCCI Class B , EN 55022 (CISPR 22), Class B
Safety	CE Mark ,commercial, CE/LVD EN60950
Warranty	1 year
