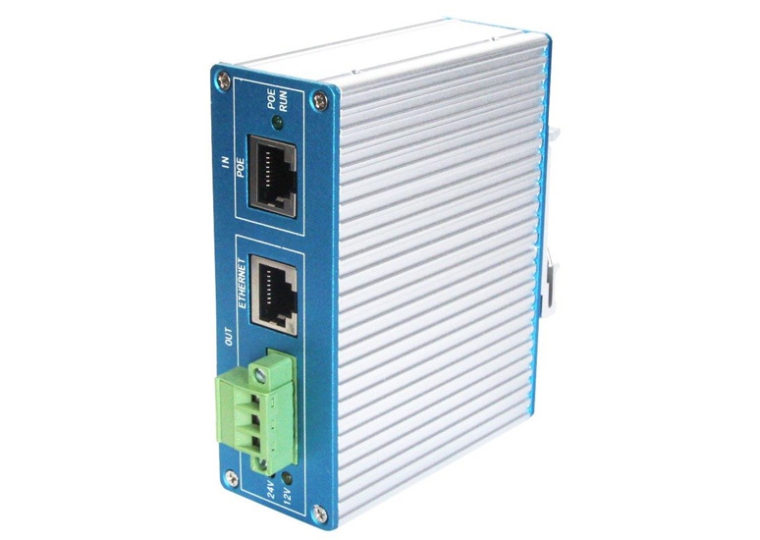

POE SPLITTER MS-3401G
Tính năng, đặc điểm
Cấp nguồn cho camera giám sát mạng IP thông qua cáp Ethernet Cat5 (PoE)
Cổng RJ45 2x10 / 100 / 1000Mbps, 1x cổng PoE công suất cao, đặc biệt cho máy ảnh vòm tốc độ cao PTZ
Hỗ trợ cổng mạng, cổng đầu vào nguồn chống sét (chống sét thứ cấp)
Tương thích với chuẩn IEEE802.3af và chuẩn IEEE802.3at
Công suất đầu ra cổng PoE đơn là 60W, tổng công suất là 75W
Điện áp đầu vào: 56V; Đầu ra: DC24V hoặc DC 12V
TECHNICAL PARAMETER LIST | |
Model | MS-3401G |
Product Name |
60W Single Port Gigabit PoE Splitter |
Connector Type | 2x 10/100M copper cable RJ45 ports, 1x PoE Port |
Network Medium | IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af/ IEEE 802.3at |
Performance | Working Speed:10/100/1000Mbps |
PoE Port Power | 60W |
PoE Standard | Support LT PoE+ high power standard, and compatible with IEEE 802.3af/ IEEE 802.3at |
Power Supply Type | PoE power supply is four line pairs of twisted pair, the positive power supply side is 1/2 or 4/5 line pair, the negative power supply side is 3/6 or 7/8 line pair |
LED Display | PoE working status |
Product Size | LxWxH: 100x80x35mm |
Working Environment | Working Temperature: 0°~ 55°C, Storage Temperature: -20°~ 75°C; Working Humidity: 10%~90%, non-condensing, Storage humidity:10%~95%,non-condensing |
Warranty | 1 years |
